@stevenpg/cesium-h3

H3 hexagonal grid helpers for CesiumJS. Cover the current view with cells, render thousands of them as one batched primitive, and traverse the grid — without touching h3-js yourself.

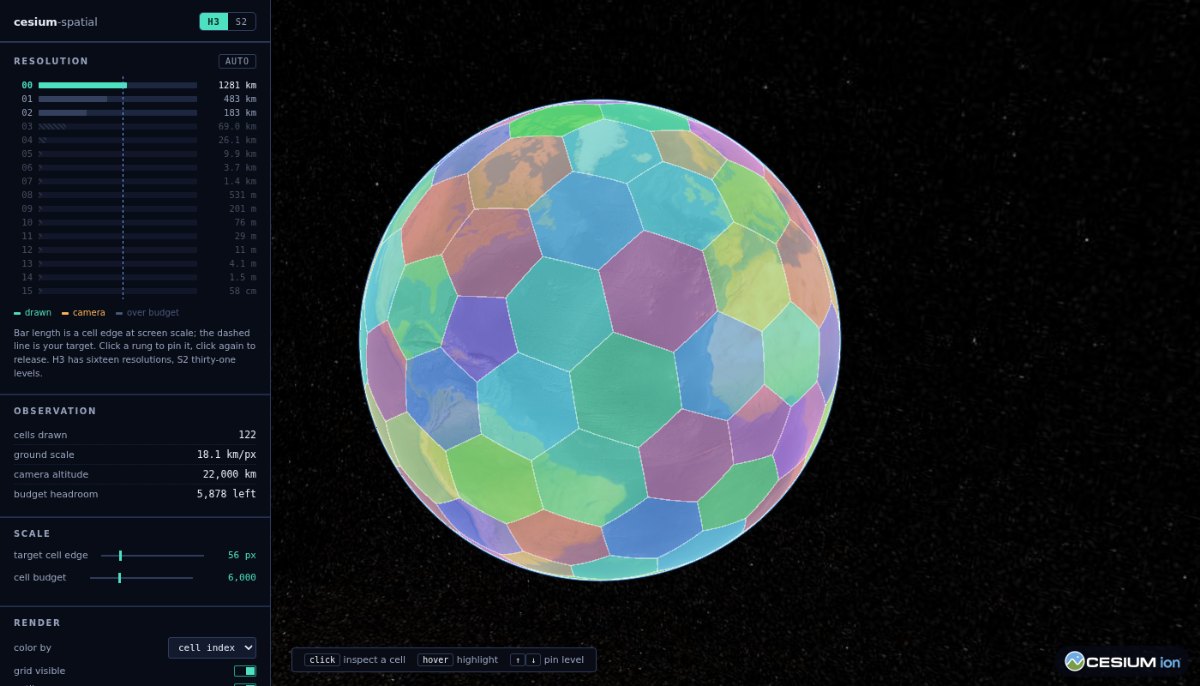

Live demo · API reference

A layer that follows the camera

import { Viewer } from 'cesium';
import { H3ViewLayer } from '@stevenpg/cesium-h3';

const viewer = new Viewer('cesiumContainer');

const layer = new H3ViewLayer(viewer.scene, {
  maxCells: 8000,        // budget; coarsens rather than overrunning
  targetEdgePixels: 72,  // how big a cell should look on screen
  outlines: true,
  onUpdate: ({ cells, resolution }) => console.log(cells.length, 'at res', resolution),
});
Copy

It watches the camera, derives a resolution from the view's ground resolution, covers the visible extent, and rebuilds only when the set of cells actually changes.

Or drive it yourself

import { cellAt, disk, parent, H3CellLayer } from '@stevenpg/cesium-h3';
import { Color } from 'cesium';

const origin = cellAt(-122.4194, 37.7749, 9);   // longitude first, Cesium-style
const patch = disk(origin, 12);                 // 469 cells

const layer = new H3CellLayer(viewer.scene, {
  style: (cell) => ({ color: cell === origin ? Color.ORANGE : Color.CYAN.withAlpha(0.3) }),
});

layer.setCells(patch);
layer.setCellStyle(parent(origin), { color: Color.MAGENTA });  // no rebuild
Copy

Picking

Batched primitives report geometry instances rather than application objects, so resolving a click back to a cell needs a hand:

import { CellPicker } from '@stevenpg/cesium-h3';

new CellPicker(viewer.scene, [layer], {
  onClick: ({ id }) => console.log('clicked', id),
  onHover: ({ id }) => layer.setCellStyle(id, { color: Color.WHITE }),
});
Copy

API

Cells

cellAt(longitude, latitude, resolution), cellAtCartographic, isValid, resolutionOf, isPentagonCell, cellAreaMeters.

neighbors, disk, ring, diskByDistance, areNeighbors, distanceBetween, pathBetween.

parent, ancestors, children, centerChild, compact, uncompact.

Neighbor and ring queries use H3's pentagon-safe traversals, so the twelve pentagons return five neighbors rather than nothing.

Geometry

cellToRing (flat [lng, lat, ...] degrees), cellToCellBoundary, cellsToBoundaries, cellToPositions, cellToCartographic, cellToCartesian, cellToLngLat, cellToRectangle, cellsToRectangle.

getCellBoundary / getCellBoundaries memoize behind a bounded cache and are safe to call every frame. clearBoundaryCache empties it.

Cover

cellsInRectangle, cellsInPolygon, coverRectangle (budget-aware), estimateCellCount, cellsInView.

H3 treats any polygon whose consecutive longitudes jump more than 180° as crossing the antimeridian, with no way to say otherwise — so asking for the 200° around Greenwich silently returns the 160° around the dateline. cellsInRectangle splits wide extents into quarter-turn segments first, which removes the ambiguity and handles Cesium's wrapping rectangles (west > east) as a side effect.

estimateCellCount works from rectangle area rather than generating cells, so a budget can back off to a coarser resolution without first materialising a set that could be millions of cells.

Resolution

H3_RESOLUTIONS (read from h3-js, not hard-coded), resolutionForMetersPerPixel, createResolutionSelector (adds hysteresis), resolutionEdgeMeters, resolutionAreaMeters, clampResolution.

Layers

H3ViewLayer — camera-driven, debounced, budget-aware.

H3CellLayer — batched primitives. Thousands of cells, one draw. Adding or removing cells rebuilds; setCellStyle and restyle do not.

H3EntityLayer — one Cesium entity per cell. Far more expensive, but each cell becomes a real entity you can select, describe or animate. Accepts an options bag or a full entityFactory hook.

All three support terrain clamping, extrusion into prisms, and optional outlines.

Cesium compatibility

Cesium is a peer dependency (>= 1.95), so this never bundles a second copy of the engine. @cesium/engine is supported as an optional peer; everything used lives in engine, so an engine-only project can alias cesium to @cesium/engine in its bundler.

h3-js is a regular dependency. It is compiled C and around 500 KB, which is why H3 lives in its own package rather than a combined one.

See also

@stevenpg/cesium-s2 does the same job for the S2 grid, on the same core.

Apache-2.0.
